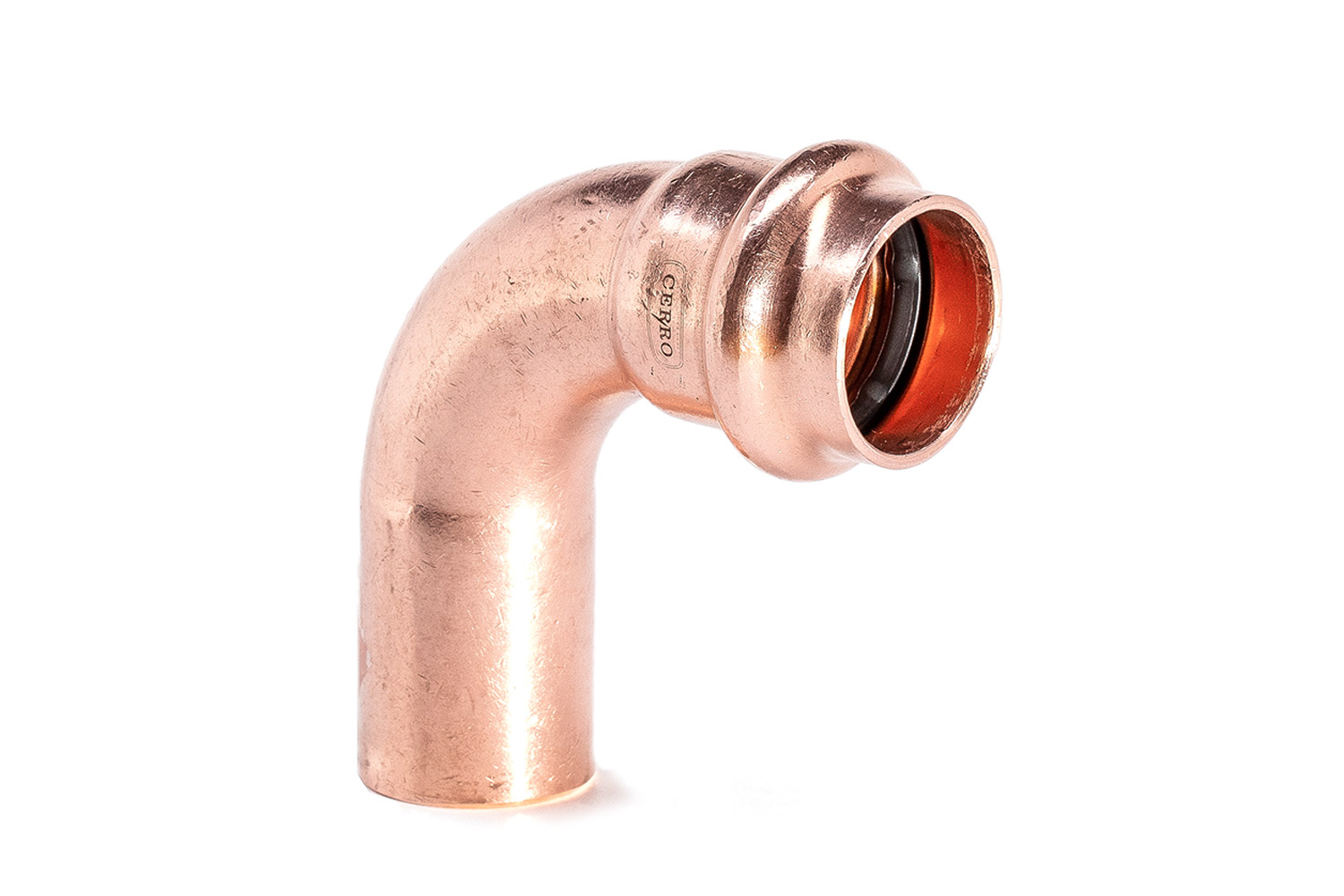

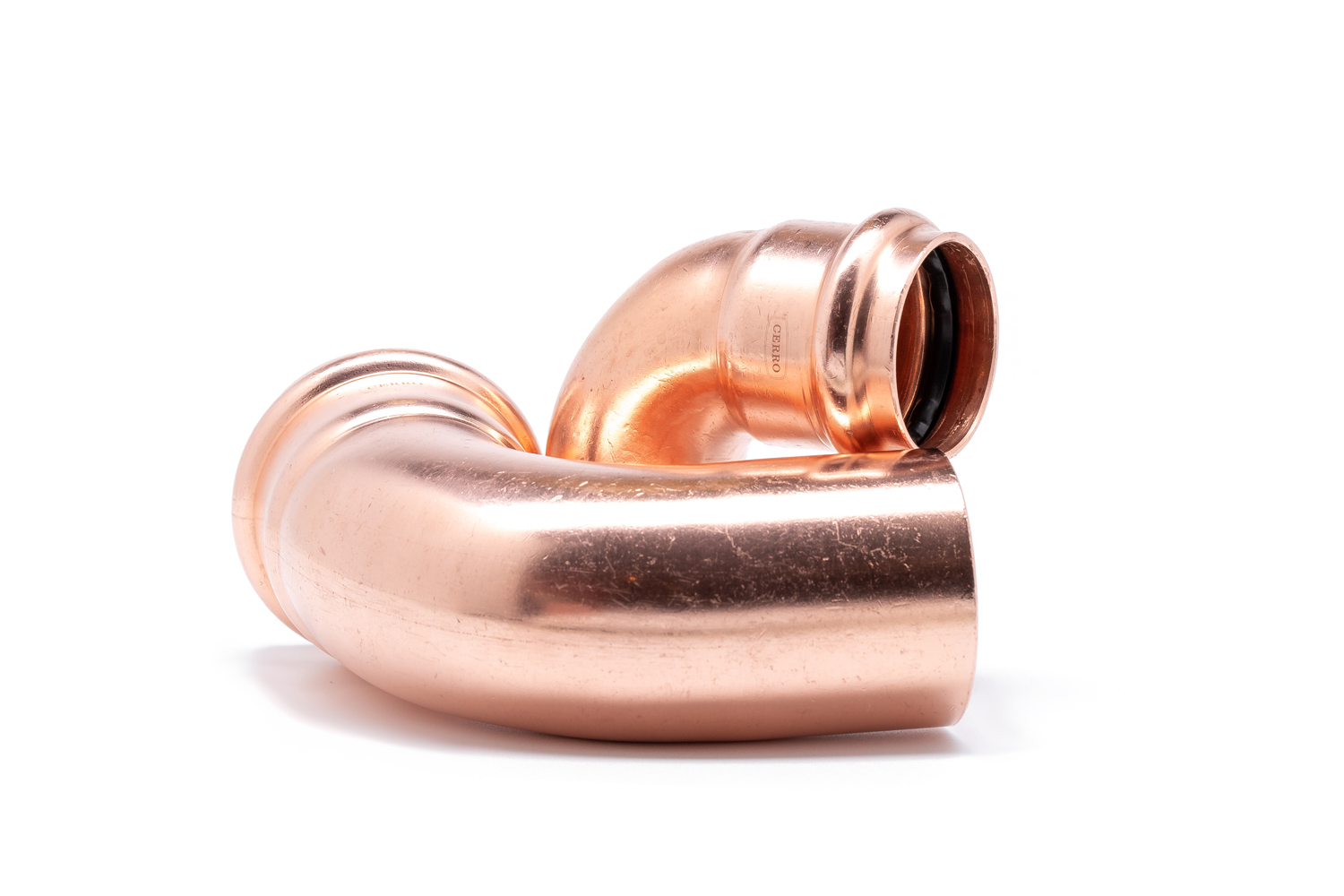

90 Street Elbow
• NSF/ANSI 61-G/372 Lead Free• ASME B16.51
• Uniform Plumbing Code (cUPC)
• IAPMO PS 117
• Copper Alloy C12200
• Potable Water
• EPDM O-Ring
Download product BIM, CAD, or PDF (choose file type):

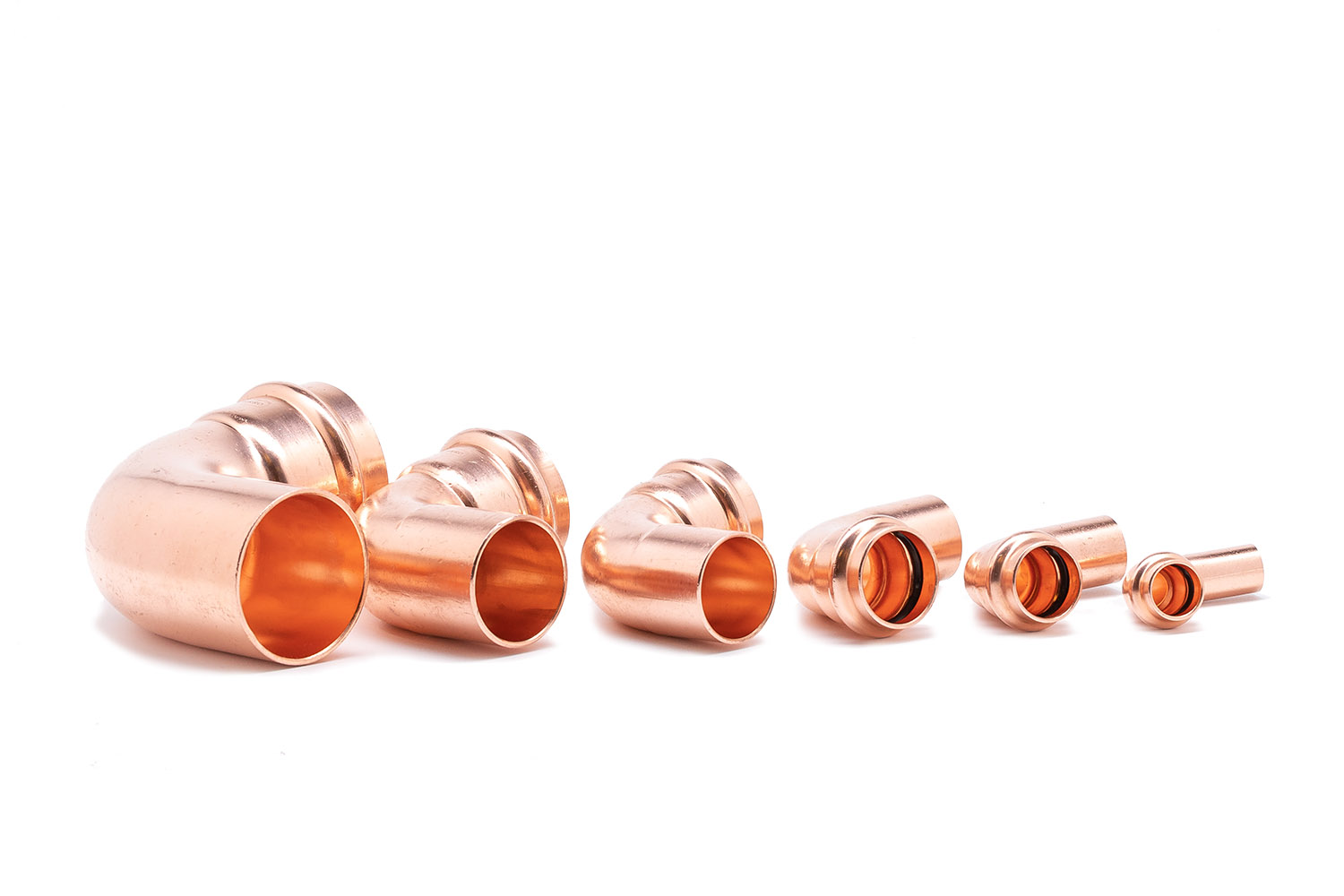

| Part # | size | type | L1 (in) | A1 (in) | L2 (in) | A2 (in) | L3 (in) | A3 (in) | Each Weight (lbs) |
| 10402 | 1/2" | P x FTG | 1.555 | 0.748 | 1.732 | - | - | - | 0.10 |
| 10404 | 3/4" | P x FTG | 1.673 | 0.728 | 1.870 | - | - | - | 0.16 |
| 10406 | 1" | P x FTG | 2.244 | 1.299 | 2.362 | - | - | - | 0.27 |
| 10408 | 1-1/4" | P x FTG | 2.323 | 1.181 | 2.520 | - | - | - | 0.37 |
| 10410 | 1-1/2" | P x FTG | 2.717 | 1.260 | 2.835 | - | - | - | 0.67 |
| 10412 | 2" | P x FTG | 3.780 | 2.165 | 3.819 | - | - | - | 1.11 |
