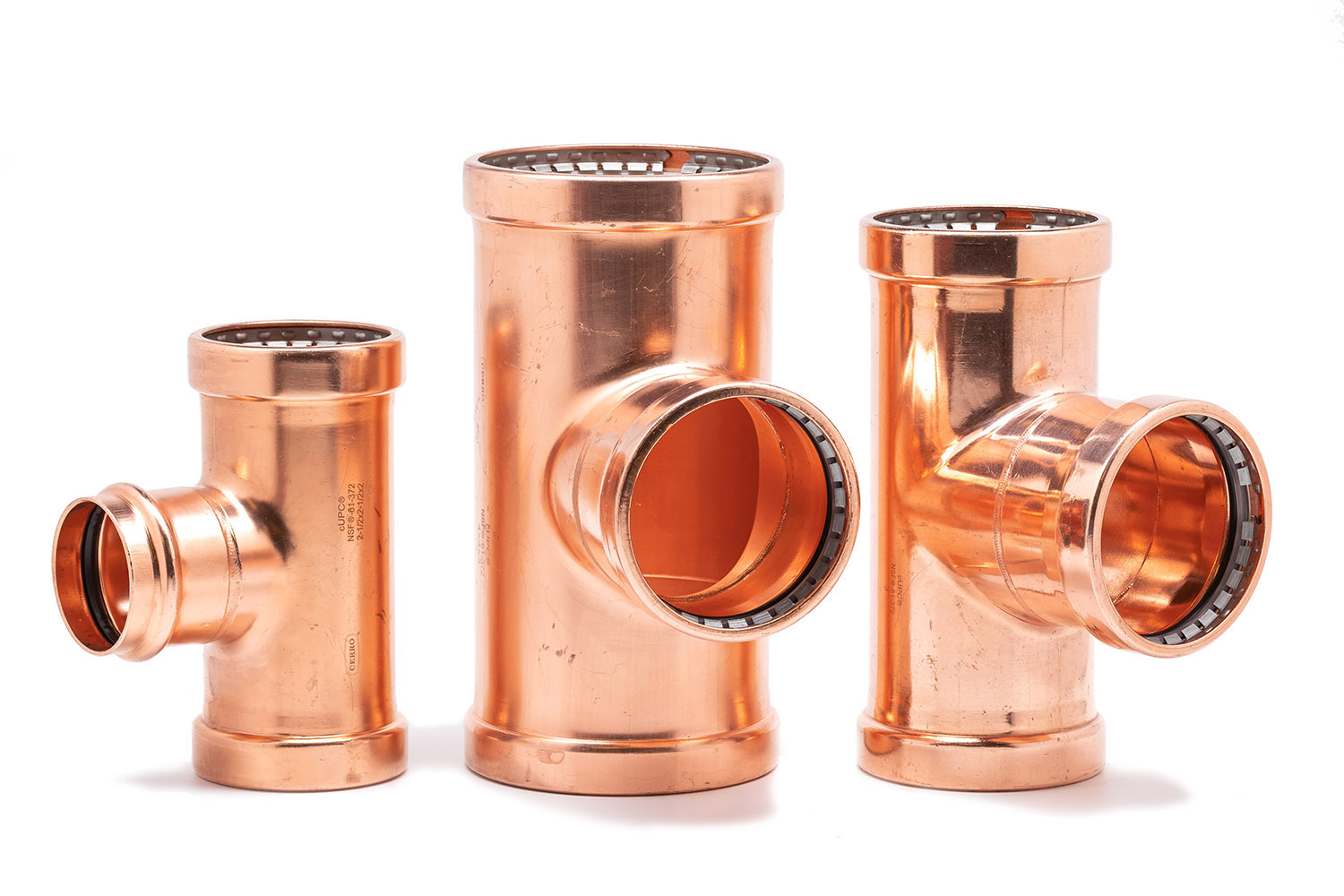

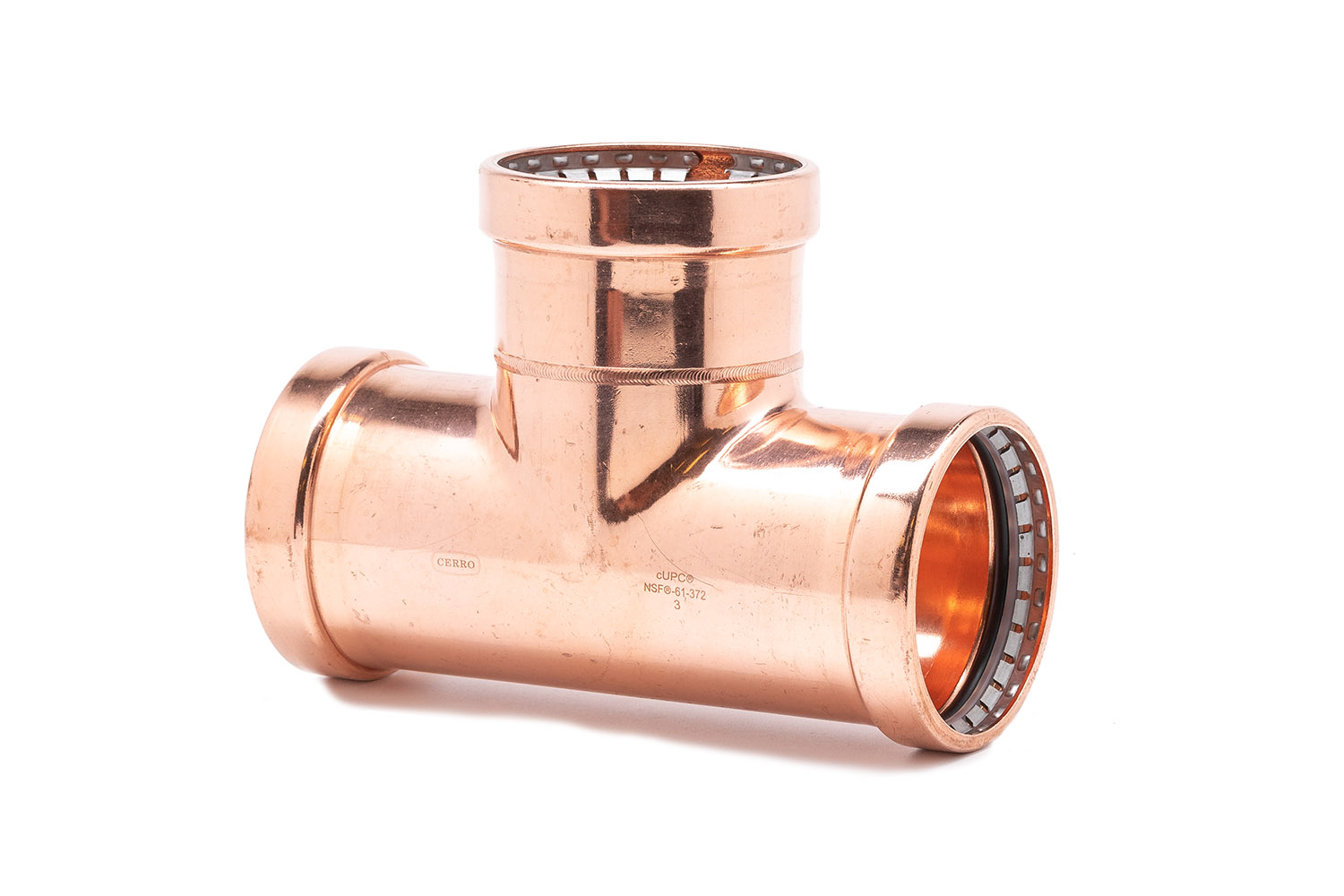

    Tee – Reducer XL

    April 21, 2020

    cerro copper products
    cerro copper products
    Tee - Reducer XL - Image 3

    Tee – Reducer XL

    • NSF/ANSI 61-G/372 Lead Free
    • ASME B16.51
    • Uniform Plumbing Code (cUPC)
    • IAPMO PS 117
    • ICC ES PMG
    • Copper Alloy C12200
    • Potable Water
    • EPDM O-Ring

    • Product Details

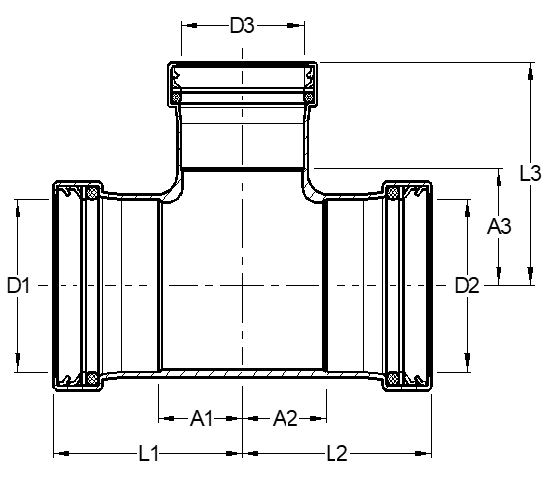

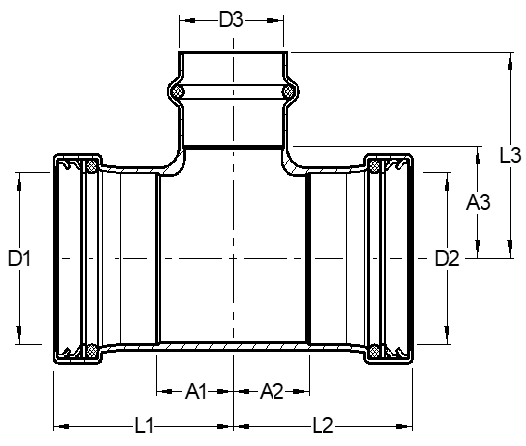

    Part # size type L1 (in) A1 (in) L2 (in) A2 (in) L3 (in) A3 (in) Each Weight (lbs)
    11502 2-1/2" x 3/4" x 2-1/2" P x P x P 3.524 1.831 4.350 3.445 3.622 1.929 2.06
    11504 2-1/2" x 1" x 2-1/2" P x P x P 3.524 1.831 4.193 3.287 3.622 1.929 2.02
    11506 2-1/2" x 1-1/4" x 2-1/2" P x P x P 3.524 1.831 4.252 3.150 3.622 1.929 2.08
    11508 2-1/2" x 1-1/2" x 2-1/2" P x P x P 3.524 1.831 4.449 3.031 3.622 1.929 2.21
    11510 2-1/2" x 2" x 3/4" P x P x P 3.228 1.535 4.094 2.520 3.878 2.972 1.40
    11512 2-1/2" x 2" x 1" P x P x P 3.228 1.535 4.094 2.520 3.760 2.854 1.42
    11514 2-1/2" x 2" x 1-1/4" P x P x P 3.228 1.535 4.094 2.520 3.819 2.717 1.59
    11516 2-1/2" x 2" x 1-1/2" P x P x P 3.228 1.535 4.094 2.520 4.016 2.598 1.67
    11518 2-1/2" x 2" x 2" P x P x P 3.228 1.535 4.094 2.520 3.504 1.929 1.84
    11520 2-1/2" x 2" x 2-1/2" P x P x P 3.524 1.831 4.350 2.776 3.622 1.929 2.17
    11534 3" x 3/4" x 3" P x P x P 4.055 2.067 4.843 3.937 4.173 2.205 2.96
    11536 3" x 1" x 3" P x P x P 4.055 2.067 4.705 3.799 4.173 2.205 2.89
    11538 3" x 1-1/4" x 3" P x P x P 4.055 2.067 4.764 3.661 4.173 2.205 2.93
    11540 3" x 1-1/2" x 3" P x P x P 4.055 2.067 4.961 3.543 4.173 2.205 3.05
    11542 3" x 2" x 2" P x P x P 3.504 1.575 4.350 2.776 3.799 2.224 2.33
    11544 3" x 2" x 2-1/2" P x P x P 3.819 1.850 4.606 3.031 3.858 2.165 2.61
    11546 3" x 2" x 3" P x P x P 4.055 2.067 4.862 3.287 4.173 2.205 2.96
    11548 3" x 2-1/2" x 2" P x P x P 3.504 1.575 4.213 2.520 3.799 2.224 2.47
    11550 3" x 2-1/2" x 2-1/2" P x P x P 3.819 1.850 4.468 2.776 3.858 2.165 2.87
    11552 3" x 2-1/2" x 3" P x P x P 4.055 2.067 4.724 3.031 4.173 2.205 3.18
    11568 4" x 3" x 2" P x P x P 3.976 1.594 4.744 2.776 4.232 2.657 4.04
    11570 4" x 3" x 3" P x P x P 4.468 1.713 5.276 3.307 4.646 2.677 4.92
